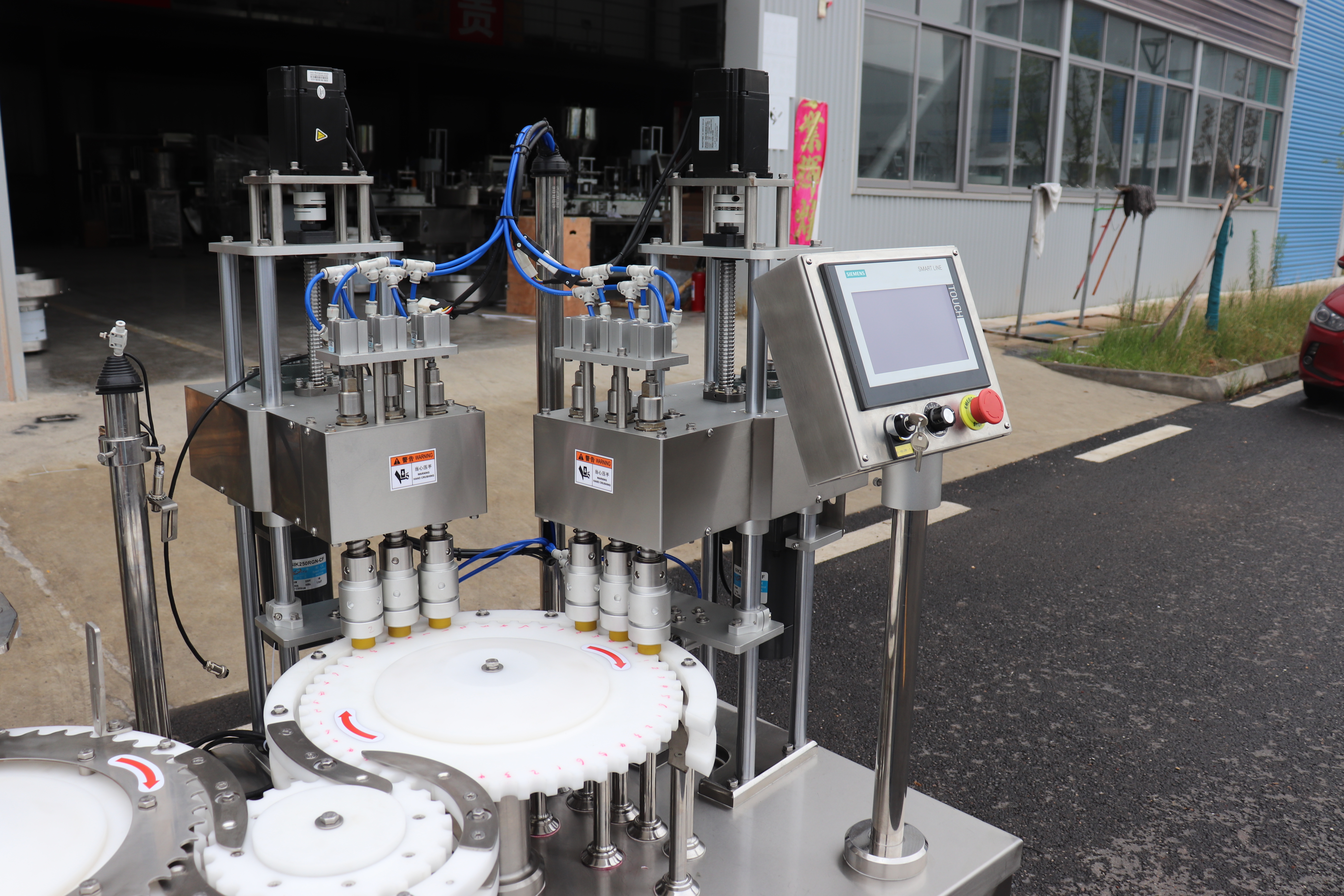

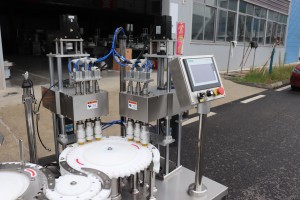

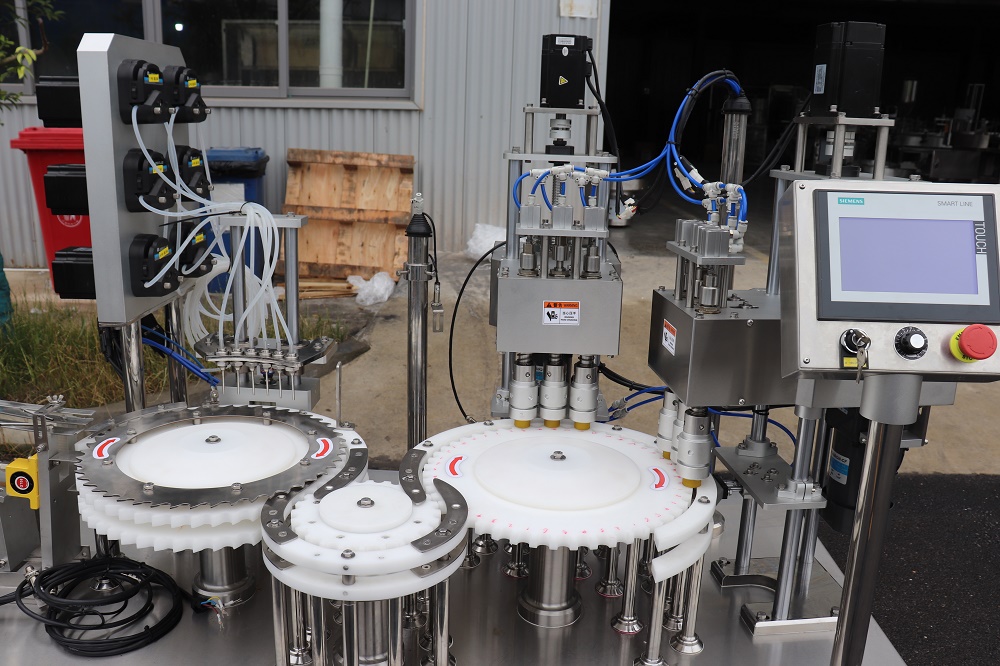

detection reagent tube filling and capping machine

Overview:

This machine is mainly applied to various material round bottle, flat bottles. Filling material could be small dose of medicine liquid, like eyedrop, syrup, iodine, and eliquid etc

peristaltic pump keep the filling liquid clean ,has high measuring precision .

The machine finished all works of bottle feeding, filling, putting inner plug if there is and capping outer covers automatically.

Feature

• High filling precision
• Suitable for different bottle size ,1ml-100ml
• The machine adopts full-auto PLC and human-computer touch screen control system.
• No bottles ,stop filling
• No bottles ,No plunger and caps feeding .
• Magnetic moment capping, adjustable on pine, tight, do not hurt the jar and cover.
• Versatility, suitable for different specifications and bottle type, changing accessories convenient;
• Photoelectric detection devices make the machine realize down work to protection and automatic start up when lack of bottle or more bottles and other working fault
• Stepless speed regulation, the microcomputer, man-machine interface control, convenient operation adjustment
• Mechanical arm take and put plug and cap, stable and very accurate
• Parameter:


  Model	BW-SF
  Packing material	Liquid
  Filling nozzle	1/2/4 etc
  bottle size	customized
  Filling Volume	customized
  Capacity	20-120bottles/min
  Total power consumption	1.8Kw/220V(customized)
  Machine Weight	Approx. 500 Kgs
  Air supplier	0.36³/minute
  Single machine noise	≤50dB

1. SIEMENS PLC and touch screen

2. mechanical arm to take and put caps.

3.  Magnetic torque capping head without damage of caps.

4.  Stable and reasonable design structure.
