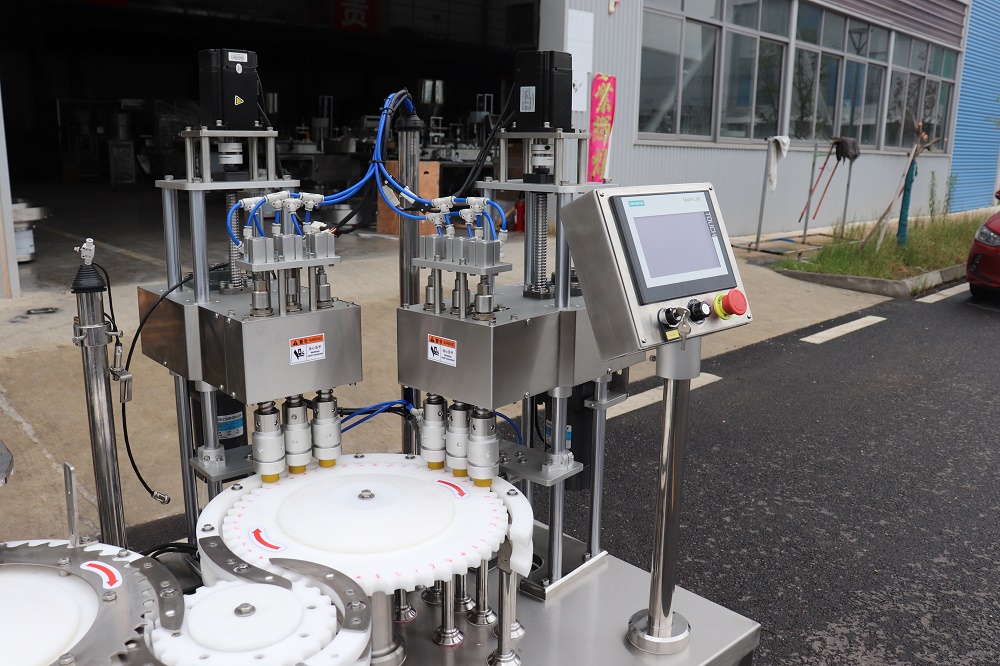

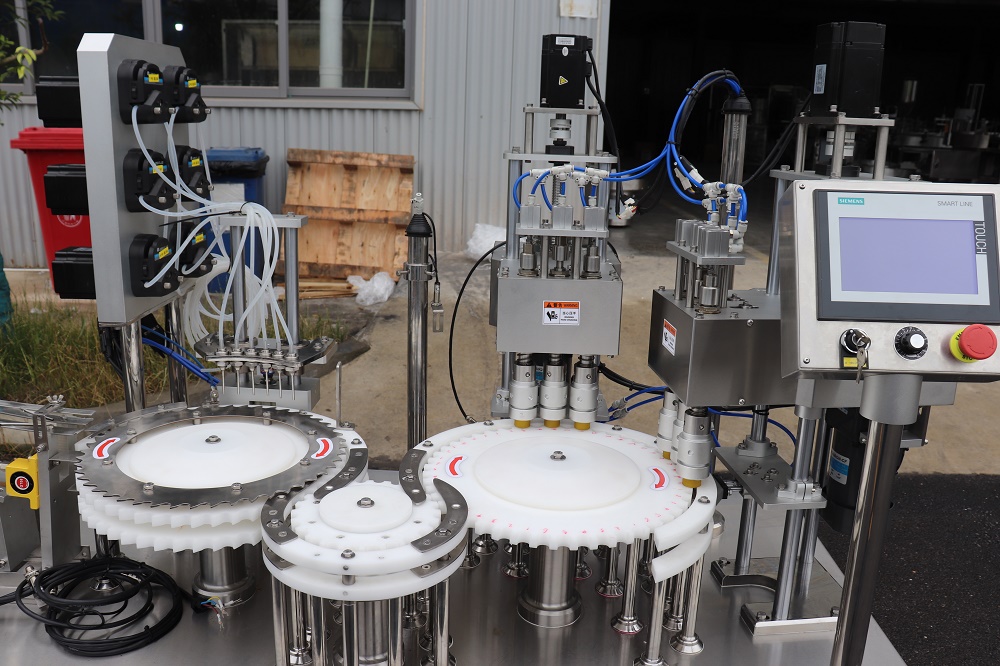

IVD reagent tube filling and capping machine

Short Description:

Advantages of diagnostic reagent filling and capping machine

  1. 2mm thick SUS304 machine frame and SUS316L for product touch part.
  2. SIEMENS PLC and touch screen; Mitsubishi inverter and Schneider electrical elements.
  3. Mechanical arm to take and put caps.
  4. Magnetic torque capping head without damage of caps.
  5. Stable and reasonable structure.


Detail

our advantages

video

customers' feedbacks

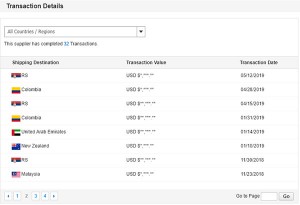

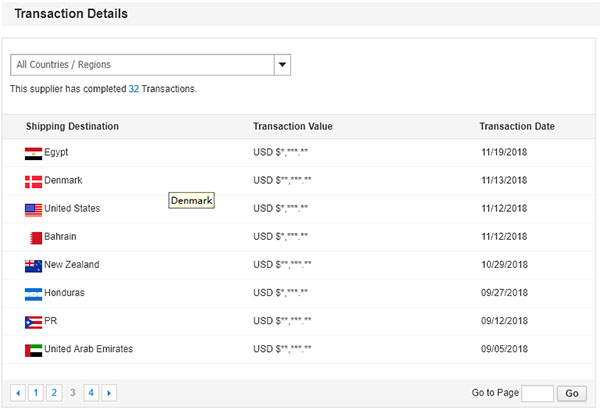

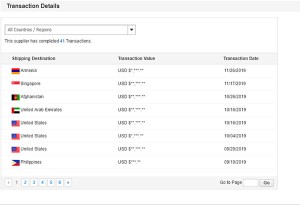

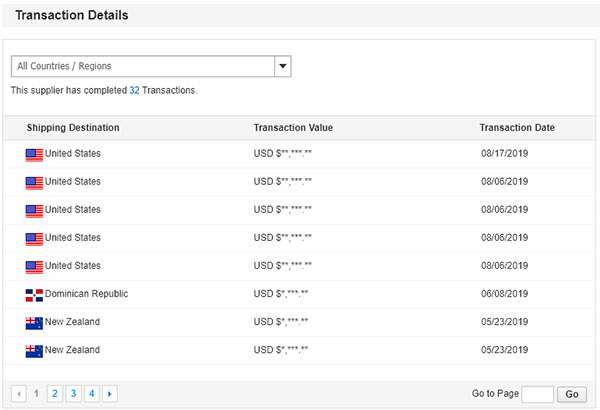

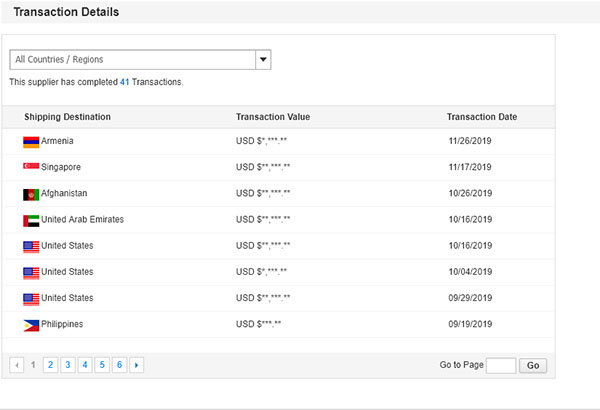

transaction history

CERTIFICATE

Product Tags

Overview:

This machine is mainly applied to various products in tubes, like diagnostic reagent,  detection reagent, vaccine etc

peristaltic pump or piston pump etc keep the filling liquid clean ,has high measuring precision .

The machine finished all works of bottle feeding, filling, putting inner plug if there is and capping automatically.

Feature

  • High filling accuracy
  • Suitable for different bottle size ,1ml-100ml
  • The machine adopts full-auto PLC and human-computer touch screen control system.
  • No bottles ,stop filling
  • No bottles ,No caps feeding .
  • Magnetic moment capping head, adjustable on pine, tight, do not damage the jar and cap.
  • Versatility, suitable for different specifications and bottle type, changing accessories convenient;
  • Photoelectric detection devices make the machine realize down work to protection and automatic start up when lack of bottle or more bottles and other working fault
  • Stepless speed regulation, the microcomputer, man-machine interface control, convenient operation adjustment
  • Mechanical arm take and put cap, stable and very accurate

Parameter:

Model

BW-SF

Packing material

Liquid

Filling nozzle

1/2/4 etc

bottle size

customized

Filling Volume

customized

Capacity

20-120bottles/min

Total power consumption

1.8Kw/220V(customized)

Machine Weight

Approx. 500 Kgs

Air supplier

0.36³/minute

Single machine noise

≤50dB



After sales service

  1. Offer professional operation manual
  2. Online support
  3. Video technical support
  4. Free spare parts during warranty period
  5. Field installation, commissioning and training
  6. Field maintenance and repair service




  • Previous:
  • Next:

  • 1. SIEMENS PLC and touch screen

    diagnostic reagent tube filling and capping machine

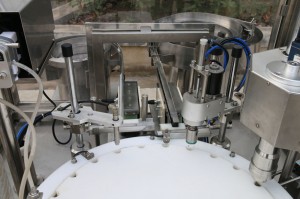

    2.  mechanical arm to take and put caps.

    diagnostic reagent tube filling and capping machine



    3.  Magnetic torque capping head without damage of caps.

    diagnostic reagent tube filling and capping machine



    4.  Stable and reasonable design structure.

    diagnostic reagent tube filling and capping machine
