Automatic n95 mask making line

Short Description:

Automatic KN95 mask making line


Detail

certificate

video

Product Tags

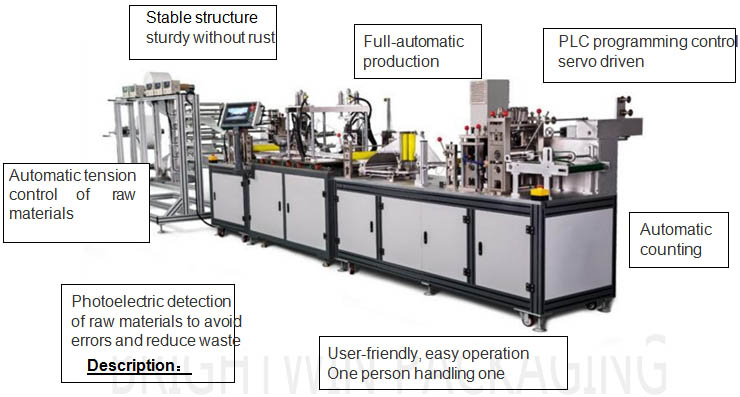

Automatic n95 mask making line1

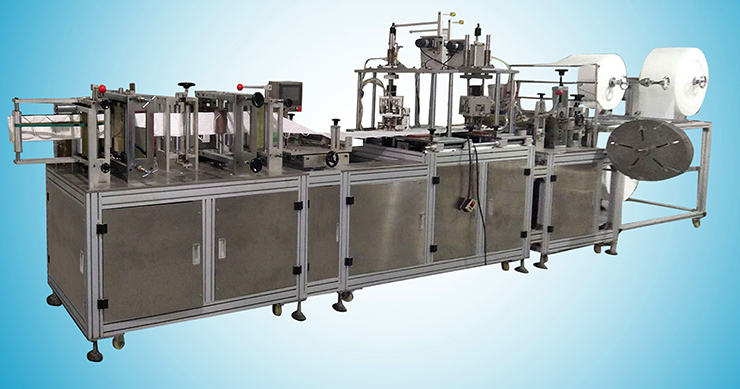

BW mask machines are used for full-automatic folding masks production (typical models like N95 mask).

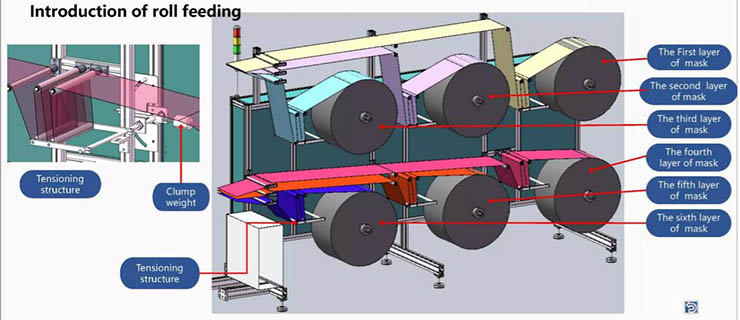

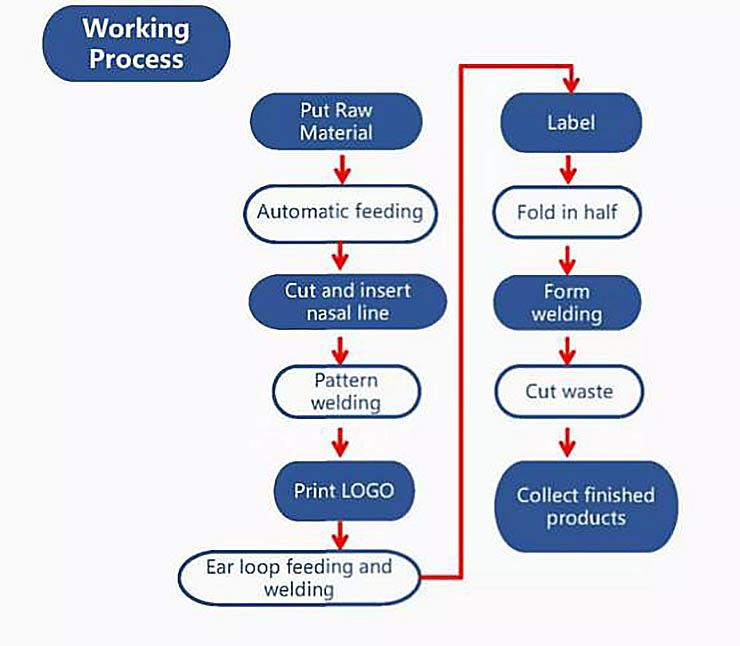

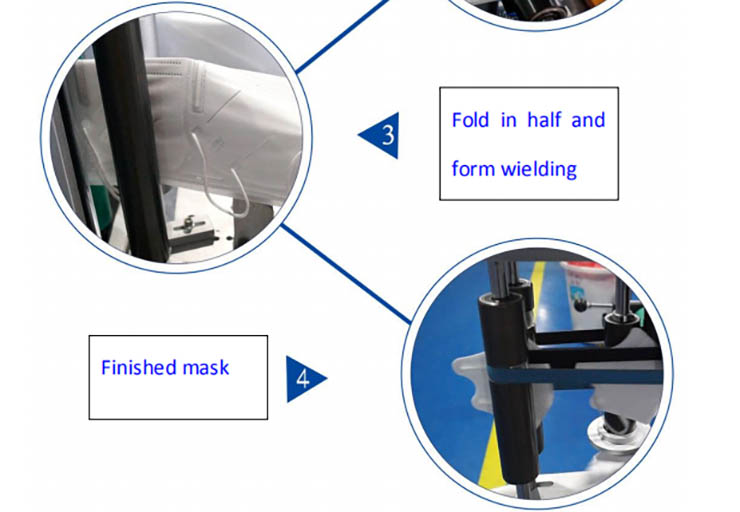

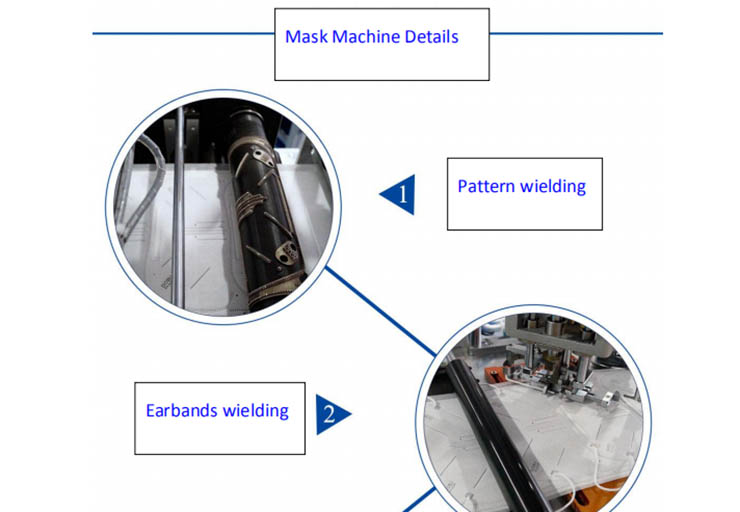

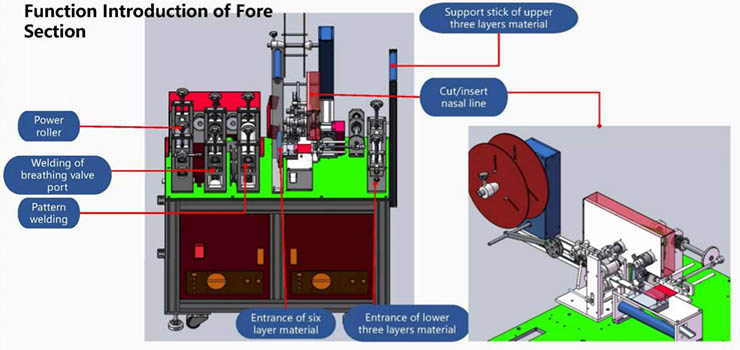

The working process of BW N95 Mask Machines are as follows: the multi-layer non-woven fabric rolls are subjected to compound roll welding after feeding. Nasal lines are welded after unwinding and cutting. Two rolls of earbands are welded after automatically unwinding and cutting to fixed length. Then masks are folded in half. After ultrasonic welding and fusion, the masks are rolling-cut and formed.
The masks have great filtration effect, perfectly fitted and are comfortable to wear without causing any pressure. The masks can be applied to various fields, like medical, electronics, mining, construction and etc. BWN95 Mask Machine uses PLC, touch screen control and the main conveyor adopting motor transmission, which can achieve precise movement and adjustable speed.

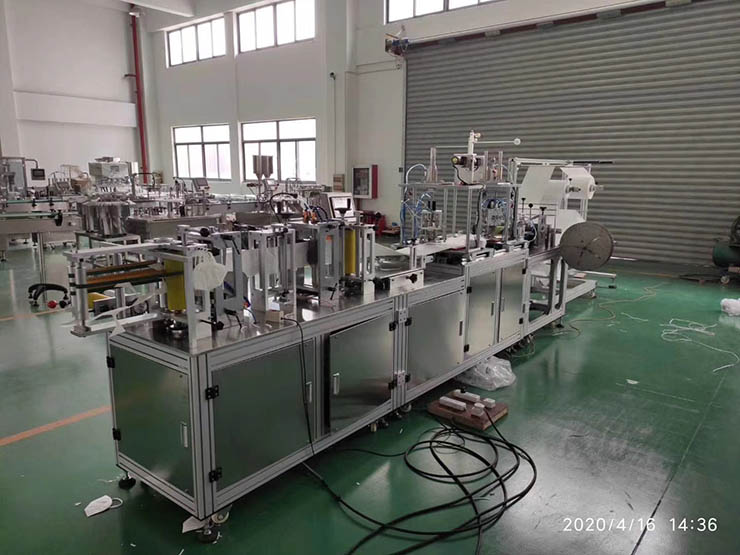

Automatic n95 mask making line2

Model

BW-2020

Movement control

PLC programming control

Compressed air

0.6~0.8 MPa, flow rate about 200L / min

Power

380VAC ± 5 ﹪, 50HZ, rated power about 15KW

Can be customized

Weight

≤5000kg,Ground load≤500KG/m2

Ultrasonic power

2KW*5 units ( form welding 2 units ,earband welding

2 unit, nasal line 1 unit)

Servo motor

1.3KW*1 unit

Reducer motor

15W*2 units

Outfeed motor

25W*1 unit

Power controller

0.25KW*3 units

Dimension

L1050*W150*H220cm

Speed

25-60pcs/min (depends on the thickness of material)

Operating environment

temperature 10 ~ 35 ℃, humidity 5-35% HR, no flammable, corrosive gas,

no dust (cleanliness noless than 100,000)



Automatic n95 mask making line3

Automatic n95 mask making line4

Automatic n95 mask making line6

Automatic n95 mask making line5

Automatic n95 mask making line8

Automatic n95 mask making line7

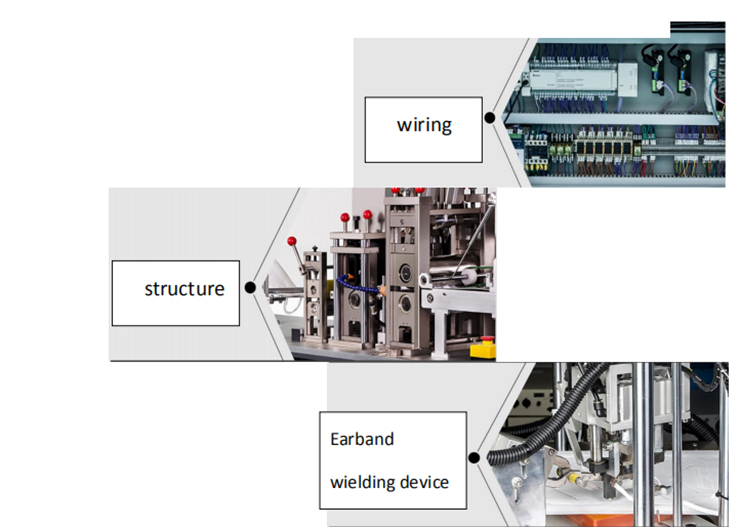

Automatic n95 mask making line11

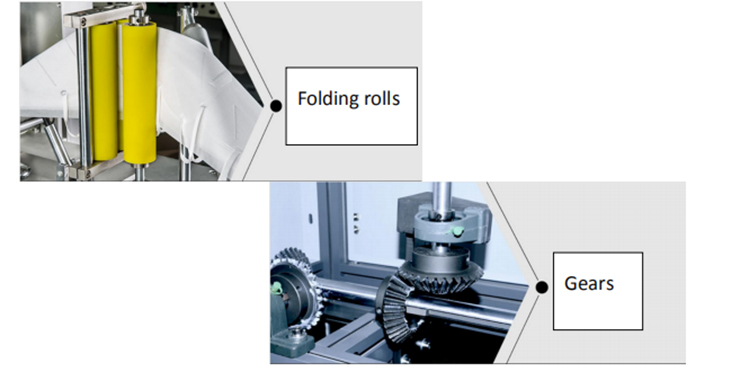

Automatic n95 mask making line10

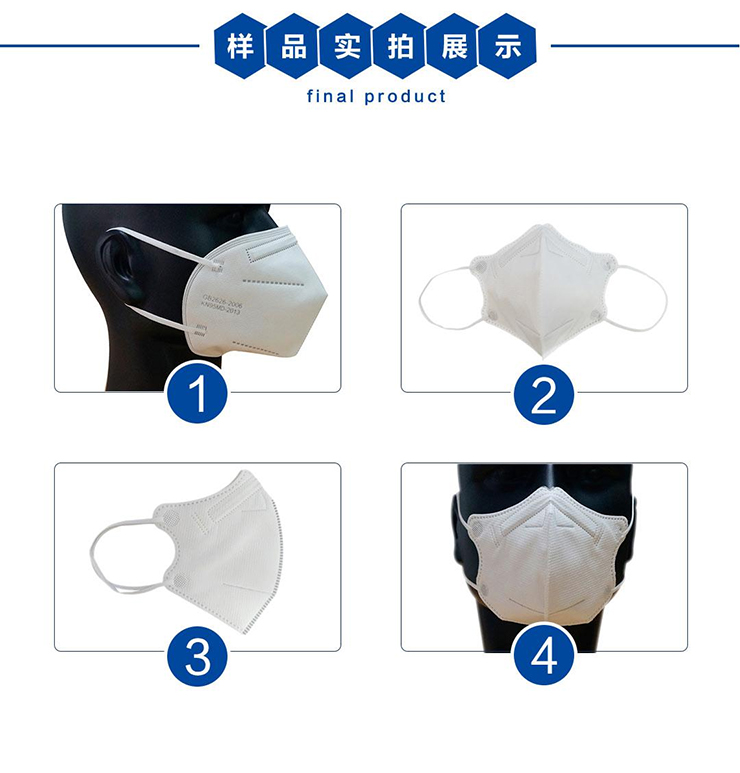

Finished KN95 Masks

Automatic n95 mask making line12

cof
