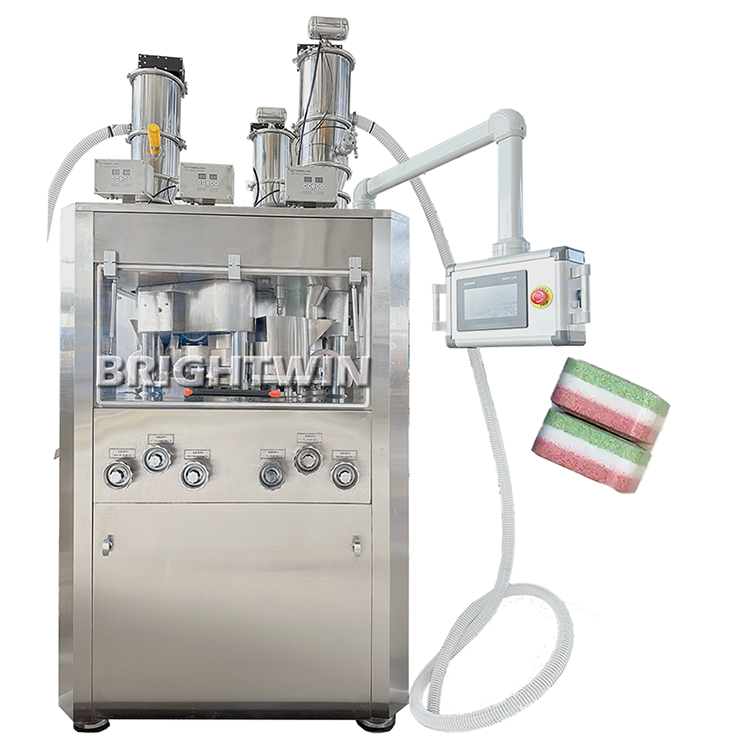

27 punches 9g tricolor dishwasher tablet pressing machine with powder vacuum elevator
Overview
The machine adopts three rollers and continuous press machine. It is to press the various kinds of granular materials into the form of tablet, with the most outstanding advantage of being able to produce irregular tablets with widely different geometrical shapes such as three layer tablets, double-side engraved tablets.
It mainly used in the pharmaceutical industry and are also suitable for chemical foods and electronics industry.
1. The machine is closed, meeting GMP requirement.
2. With transparent glass cover, can see the working situation inside, also can open it to clean and maintain it.
3. High pressure, can press product in large size, and different shapes with patterns.
4. Can press two layers of products.
5. Different sizes can share one machine within certain limits.
6. With overload protection device, avoid damage of the machine.
7. Adopts oil-immersed lubricating transmission mechanism, Being hermetic under the machine to prolong the service life, and avoid cross-infection.
8. The max capacity can be 24300pcs/hour, choose different machine model according to different capacity.
| Normal quantity of Punch&die(Set) | 27 |
| Max. Pressure (KN) | 150 |
| Max length (mm) | 50 |
| Max. Depth of Filling (mm) | 32 |
| Cube size(mm) | Customized |
| Rotate Speed (r/min) | 15 |
| Production Capacity (pc/m) | 405 |
| Electric power source(V/Hz) | 380/50 |
| Power (KW) | 15 |
| Outside Measurement (mm) | 1150*1150*1900 |
| Weight (Kilogram) | 4000 |
If you have other capacity need, please contact us for details of other model machine.
The shape of product can be customized, show us your product, We will give you the best recommend.
