semi-automatic cube tray packing machine

Short Description:

Advantages of our semi-automatic cube tray packing machine:
We are the first one in China who made this cube tray packing machine
It can pack 3 layers, 4 layers and 5 layers etc.
International brands Electrical components

Just need to change few parts for different size carton


Detail

video

Customer feedback

transaction history

certificate

Product Tags

Semi-automatic cube tray packing machine (3)
Overview



The machine is our new design, it’s suitable for boxing cubes, medicine, cosmetics, and goods etc. It is a semi-automatic multi-layer boxing machine. After the products are arranged, the cylinder will push them into the mold to complete the arrangement.

Specifications



●Thickness 2 mm SUS304 plate, and square tube,
●Mitsubishi PLC control,
●International brands Electrical components (as the Main Components list),
●High speed (120 cubes per minute),

●Easy to install, operate, clean, and repair,
●Just need to change few parts for different size carton.
Semi-automatic cube tray packing machine
Parameter
Capacity: 5-10 boxes per minute

Dimensions of the machine: 1800*300*950mm

Layer number: 3

Box size:

24pcs: 127mm*103mm*44.3mm (L*W*H)

12pcs: 103mm*65mm*44.3mm (L*W*H)

The cube dimensions: 50.7mm*30.7mm*13.8mm (L*W*H).

Voltage: 220V 50Hz (customized)

Air consumption: 0.2m³/minute

Power: 500W



Main Components list of the Machine:



Number

Item

Manufacturer

Origin


Quantity

1





PLC





Mitsubishi





Japan





A1



1

2



Photoelectric switch



Omron



Japan



A2



3

3



Frequency transformer



Omron



Japan



A3



1

4



Air switch



Schneider



France



A4





N

5



Switchgear/ relays



Omron



Japan



A5





N

6



Cylinder



Airtac



Taiwan, China



A6





2

7

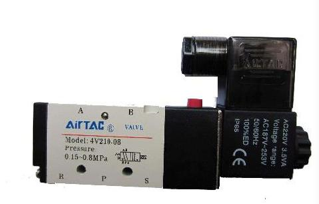

Solenoid valve



Airtac



Taiwan, China



A7



2

8



Motor



JSCC



Germany



A8



2

As the following drawing, the cubes come in two lines at the same time. Sensors will be installed at fixed places 2

Working steps:

1.When the twins sensor detect cubes at the same time, pushing cylinder 1 pushes 8 cubes to the next position.
2.After pushing cylinder 1 finishes twice pushing, sensor 1 will detect cube at it’s position, then pushing cylinder 2 will push 12 cubes to the third position.
3.The Packing plate get down one layer height to wait the second layer and the third layer.
4.When 3 layers collect at plate as the fixed arrangement, packing plate will up back to the origin height.
5.Worker covers a carton over the plate, and rotate the plate by handle, cubes will be packed onto the carton very well.

After sales services:

1.Offer professional operation manual
2.Online support
3.Video technical support
4.Free spare parts during warranty period
5.Field installation, commissioning and training
6.Field maintenance and repair service
