Counting and filling machine

Short Description:

This counting and filling machine is used for quantitative filling grains into containers according to the amount quantity of grains. It can assembled with bottle filling machine, bag filling packing machine, or carton box packing machine, etc.

It’s widly used in food, medicine, industry, daily chemicals, etc.


Detail

VIDEO

CUSTOMER FEEDBACK

TRANSACTION HISTORY

CERTIFICATE

Product Tags

Counting and filling machine

bouillon cubes counting and filling machine (4)

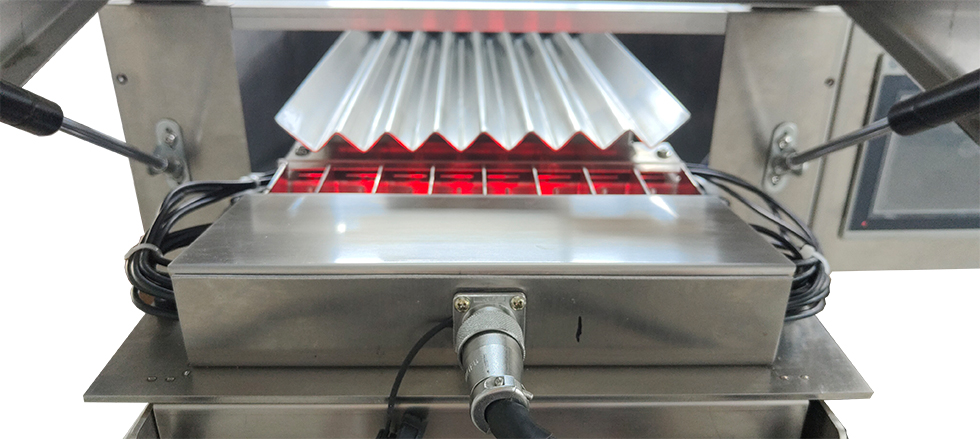

The high-speed grain product counting and filling machine combines 8, 12, 16, 24, or even 32 counting channels. Compact design with dual-track conveyor can enhance the capacity of output. The counting and filling machine equipped with advanced detecting system which can count and fill all standard and irregular shapes and all sizes of cubes, lump sugars, pills, tablets, capsules, effervescent, milk tablets, cubic sugar, soft gels and any other grain product with high accuracy.

Key features

counting and filling machine

 ●Suitable all standard and irregular shapes and all sizes of cubes, tablets, capsules, caplets etc.

●Counting discrepancies is less than 1‰

●Operation stable and lower noise

●Bottle convey smoothly with dual-tracks conveyor

●High speed filling with dual-nozzle

●full-set protecting device keep operation steady and reliable

●Touch screen Control System which is easy to control

●Simple Straight Forward Operator Controls

●On-Screen trouble description which is easy to solve

●Stainless 304 Frame

Parameters

Model

CF-8

CF-12

CF-16

CF-24

Channel number

8

12

16

24

Capacity

400-4000

800-4000

1000-5200

1200-8300

Counting range

15-9999pcs

Size of grain

min:Φ3mm  max:Φ22mm (customized)

Container diameter

Φ25-Φ75 mm(customized)

Container height

≤240 mm(customized)

Hopper volume

38L

38L×2

Air pressure

0.4-0.6 Mpa

Air consumption

120 L/min

150 L/min

200 L/min

Power

1.5KW

1.5KW

3KW

3KW

Voltage

AC220V 1P 50-60HZ((customized)

Machine size

L1800×W900×H1750mm

L2200×W1550×H1750mm

After sales service

1. Offer professional operation manual
2. Online support
3. Video technical support
4. Free spare parts during warranty period
5. Field installation, commissioning and training
6. Field maintenance and repair service
