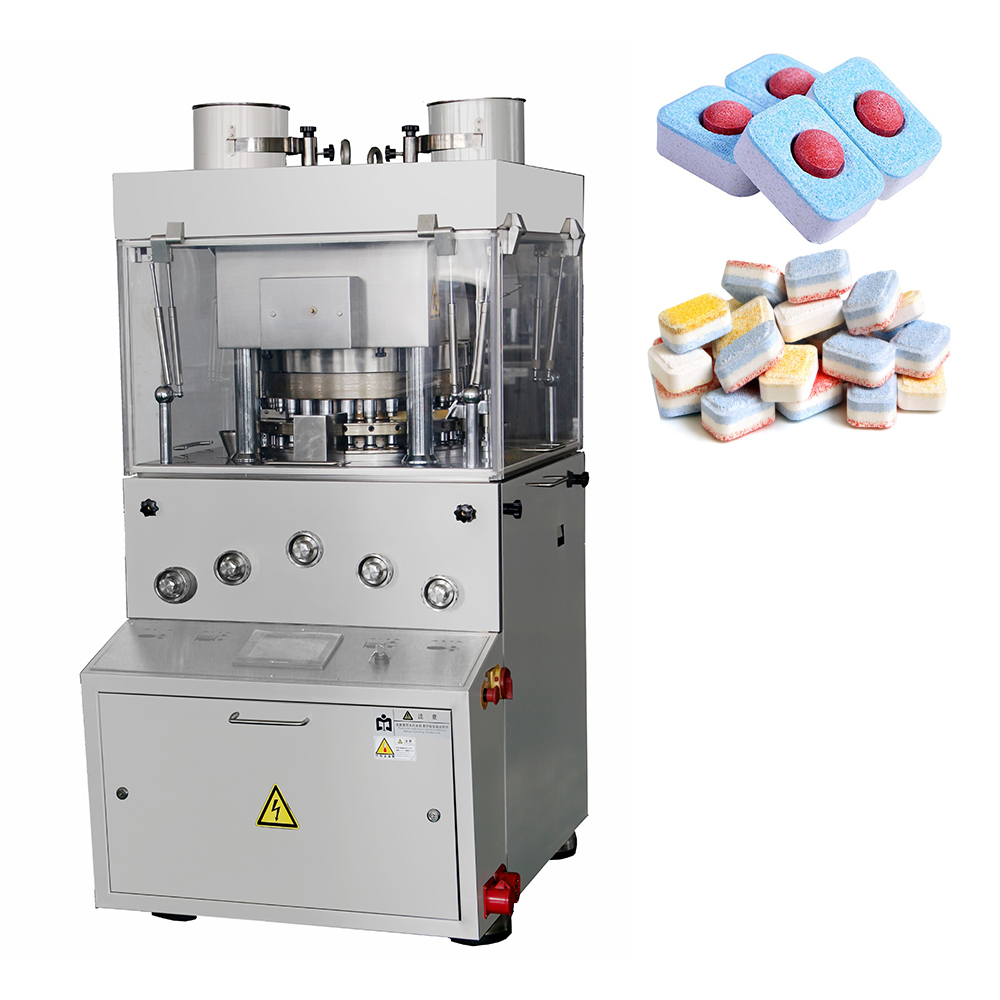

Dishwasher tablet pressing making machine
Overview

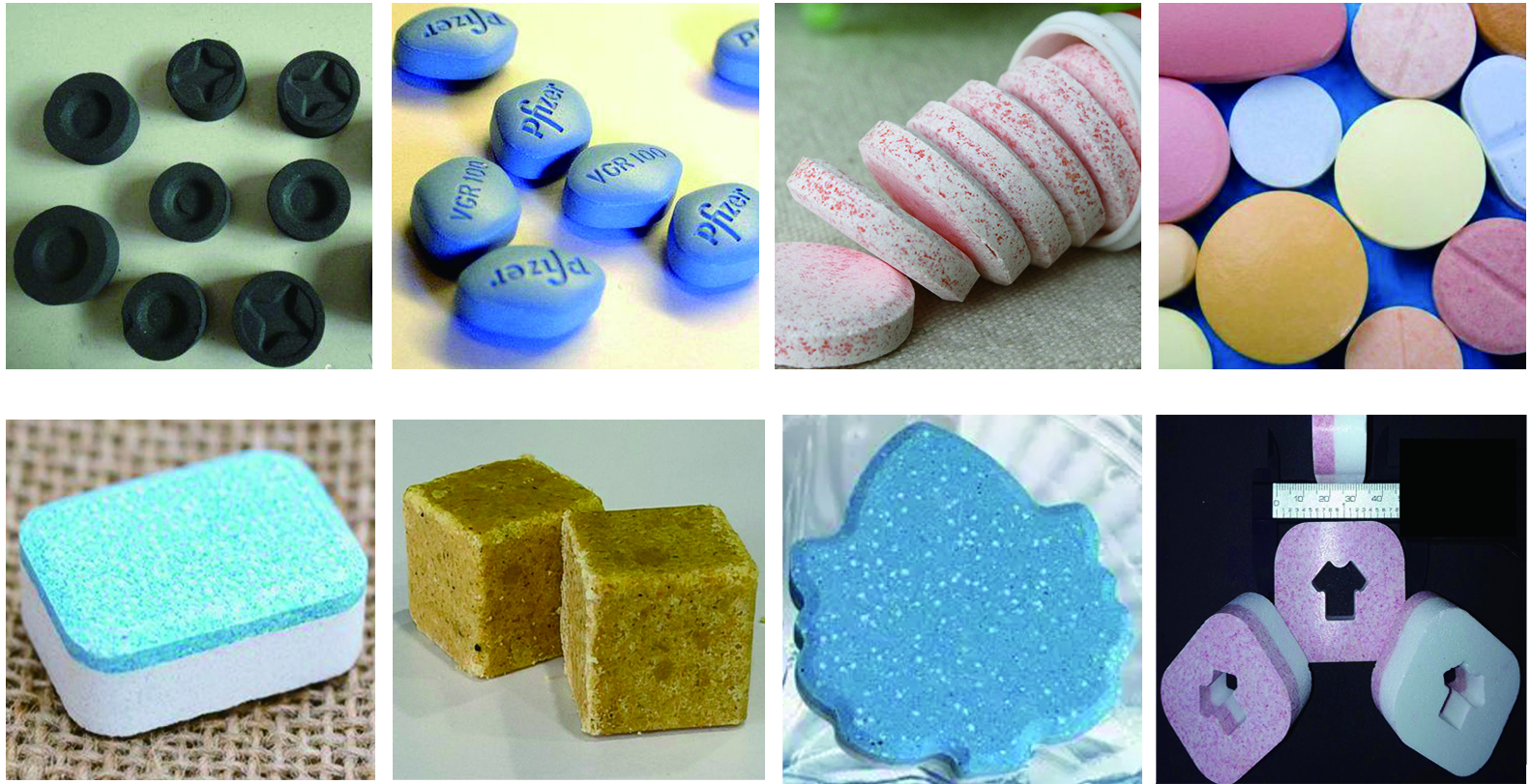

This dishwasher tablet pressing making machine is used to press dishwasher powder into any shape and size. The shape and size can be customized, like: square, round, heart, ellipse, trangle etc. If you have other shape, please show us.
Normally, dishwashers tablets are one color, two colors or three colors according to the washing function.
Features of the dishwasher tablet pressing making machine
1. The machine is closed, meeting GMP requirement.
2. With transparent glass cover, can see the working situation inside, also can open it to clean and maintain it.
3. High pressure, can press product in large size, and different shapes with patterns.
4. Can press two layers of products.
5. With overload protection device, avoid damage of the machine.
6. Adopts oil-immersed lubricating transmission mechanism, Being hermetic under the machine to prolong the service life, and avoid cross-infection.
Parameters of the dishwasher tablet pressing making machine
| Normal quantity of Punch&die(Set) | 19 | 23 |
| Max. Pressure (KN) | 100 | 120 |
| Max length (mm) | 40 | 40 |
| Max. Depth of Filling (mm) | 25 | 25 |
| Cube size(mm) | Customized | customized |
| Rotate Speed (r/min) | 20 | 11 |
| Production Capacity (pcs/m) | 600-800 | 250 |
| Electric power source(V/Hz) | 380/50-60 | 380/50-60 |
| Power (KW) | 7.5 | 12 |
| Outside Measurement (mm) | 800*960*1750 | 1100*1200*1800 |
| Weight (Kilogram) | 2300 | 3000 |
If you have other capacity need, please contact us for details of other model machine.
The shape of product can be customized, show us your product, We will give you the best recommend.
