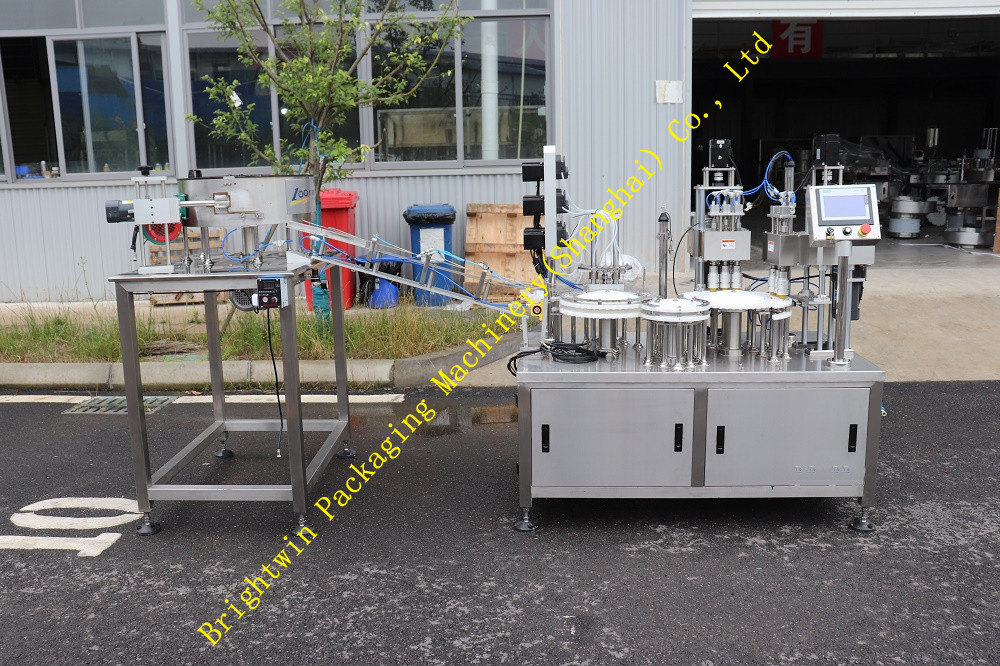

Small tubes filling and screw capping machines

Short Description:

Advantages of reagent filling and capping machine

  1. SUS304 machine frame and SUS316L for product touch part.
  2. SIEMENS PLC and touch screen, and Schneider electrical elements.
  3. Mechanical arm to take and put caps.
  4. Magnetic torque capping head without damage of caps.
  5. Stable and reasonable structure.


Detail

OUR ADVANTAGES

video

CUSTOMERS' FEEDBACK

TRANSACTION HISTORY

CERTIFICATE

Product Tags

Overview:

This machine is mainly applied to various reagent, like diagnostic reagent,  detection reagent, vaccine etc peristaltic pump or piston pump filling, has high measuring precision .

The machine finish all works of tube feeding, filling, and capping automatically.

Feature

  • High filling accuracy
  • Suitable for different bottle size ,1ml-100ml
  • The machine adopts full-auto PLC and human-computer touch screen control system.
  • No bottles ,stop filling
  • No bottles ,No caps feeding .
  • Magnetic moment capping head, adjustable on pine, tight, do not damage the jar and cap.
  • Versatility, suitable for different specifications and bottle type, changing accessories convenient;
  • Photoelectric detection devices make the machine realize down work to protection and automatic start up when lack of bottle or more bottles and other working fault
  • Stepless speed regulation, the microcomputer, man-machine interface control, convenient operation adjustment
  • Mechanical arm take and put cap, stable and very accurate

Parameter:

Model

BW-SF

Packing material

Liquid

Filling nozzle

1/2/4 etc

bottle size

customized

Filling Volume

customized

Capacity

20-120bottles/min

Total power consumption

1.8Kw/220V(customized)

Machine Weight

Approx. 500 Kgs

Air supplier

0.36³/minute

Single machine noise

≤50dB



After sales service

  1. Offer professional operation manual
  2. Online support
  3. Video technical support
  4. Free spare parts during warranty period
  5. Field installation, commissioning and training
  6. Field maintenance and repair service
