Automatic carton packing machine

Short Description:

Overview:

The boxing machine can finish automatically folding leaflet, opening box, pushing product into box, printing batch number, and sealing etc. It is applicable for packing various solid regular objects like bags, eye-drop, medicine board, cosmetics, and cookies etc.


Detail

Video

Machines' Progress

customers' feedbacks

TRANSACTION HISTORY

Certificate

Product Tags

IMG_1927 (2)

Overview:

The boxing machine can finish automatically folding leaflet, opening box, pushing product into box, printing batch number, and sealing etc. It is applicable for packing various solid regular objects like bags, eye-drop, medicine board, cosmetics, and cookies etc.


  • Previous:
  • Next:

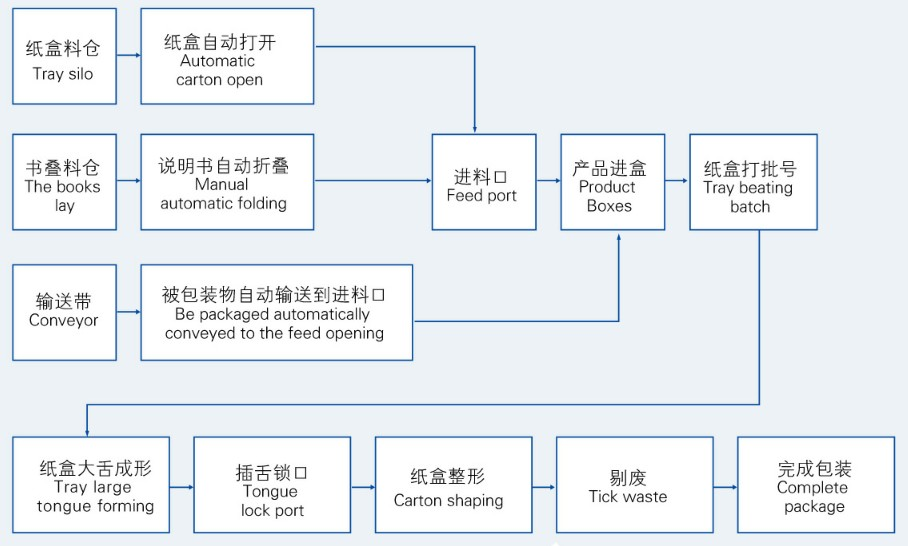

  • Workflow:

    插舌装盒步骤



    插舌装盒3_副本

    Feature:

    1. Different sizes of cartons can share one machine by adjusting, easy operation.
    2. The leaflet can be 1-4 folders.
    3. With detection and rejection function if no product or cartons.
    4. Printing batch numbers synchronously, can print 2-4 lines
    5. Shows malfunction, alarms and stops automatically, and shows how to operate and maintain it.
    6. Shows speed and counts automatically.
    7. Can be connected to other machines to form automatic packing line



    Parameter:

    Speed 50-70boxes/min
    Power supply AC 380V/220V, 50Hz, 2.5Kw
    Air consumption 20 cubic metres/hour
    Max box size 200*170*80mm
    Min box size 40*20*14mm
