Automatic 6 nozzles filling and capping machine for 1L-5L lubricant oil
Overview:
This machine is used to fill engine oil,lubricant oil,hand sanitizer, shampoo, lotion, diswashing soap and any other liquid products. It adopts piston pump filling with servo motor driven which is more accurate and easy to adjust the volume.
Parameter:
| Name | Automatic 6 nozzles filling and capping machien for lubricant oil |
| Filling head | 2, 4, 6, 8, 10, 12, 16 etc(machineoptional according to speed) |
| Filling volume | 1-5000ml etc(customized) |
| Filling speed | 100-6000bph |
| Filling precision | ≤±1% |
| Power supply | 110V/220V/380V/450V etc(customized) 50/60HZ |
| Power supply | ≤1.5kw |
| Air pressure | 0.6-0.8MPa |
| Net weight | 450kg |
Elements brand:
| Item | Brands and material |
| sensor | OMRON |
| PLC | SIEMENS |
| Touch screen | SIEMENS |
| Servo motor | Fuji |
| Piston cylinder | 5MM thick SUS316L |
| Rotary valve | SUS316L |
| Rotary valve connection | quick coupler designed from Germany |
| Filling nozzles | SUS316L stainless steel anti-drip quick-coupler design |
| Cylinder | Airtac Taiwan |
| Connecting pipe | fast loading pipe from Italy |
| Sealing ring | Imported from Germany. Composed of stainless steel spring and UPE (ultra high molecular weight polyethylene) |
| electrical parts | Schneider |
| Rack | SUS304 |
| bearings | Japan NSK, original imported |
| Level control in hopper | with |
After sales services:
1. Offer professional operation manual
2. Online support
3. Video technical support
4. Free spare parts during warranty period
5. Field installation, commissioning and training
6. Field maintenance and repair service

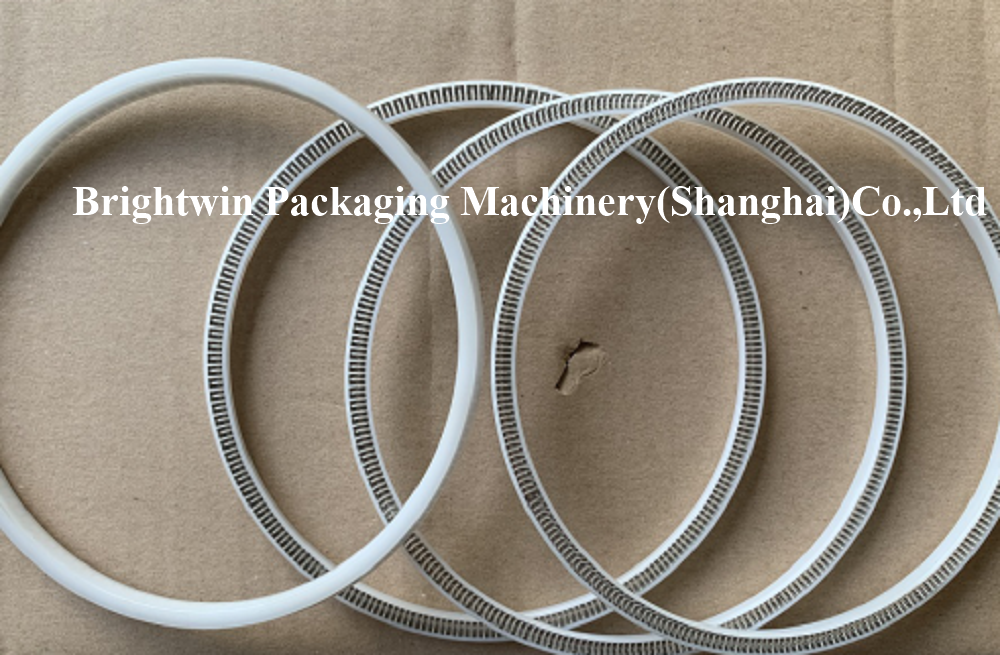

1.Specially designed thick sealing ring(Imported from Germany. Composed of stainless steel spring and UPE (ultra high molecular weight polyethylene), which is no need to replace within 3 years.As following picture:

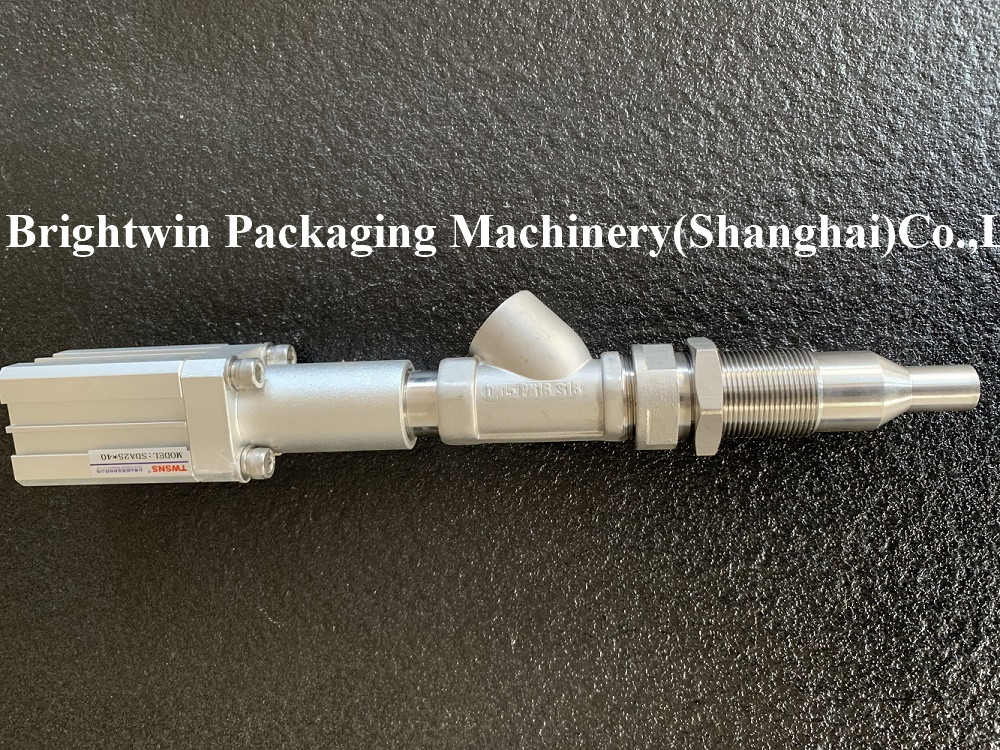

2. SUS316L long sepcial designed no–drip filing nozzles, which can protect the cylinder on the top being damaged by material. As following pictures:

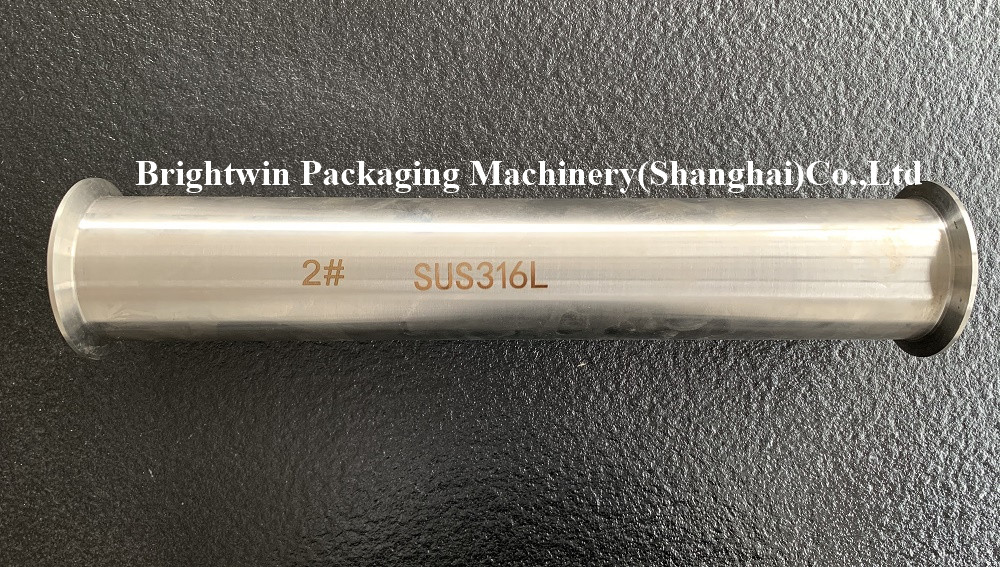

3. 304 frame, 5mm thick SUS316L honing piston pump.
4. With detector in each SUS316L valve and filling nozzle, if there is any problem in any nozzle, it can be found quickly from touch screen.
