A well-known condiment company’s 1600pcs/min 4g tomato flavored cube pressing wrapping machine processing line

Short Description:

This customer is a well-known condiment company, they visited many suppliers, and chose us at the end.

The line’s capacity is 1600 cubes per minute, very fast, and stable. They plane to order more lines from us.

Send email to us Download as PDF

Detail

Product Tags

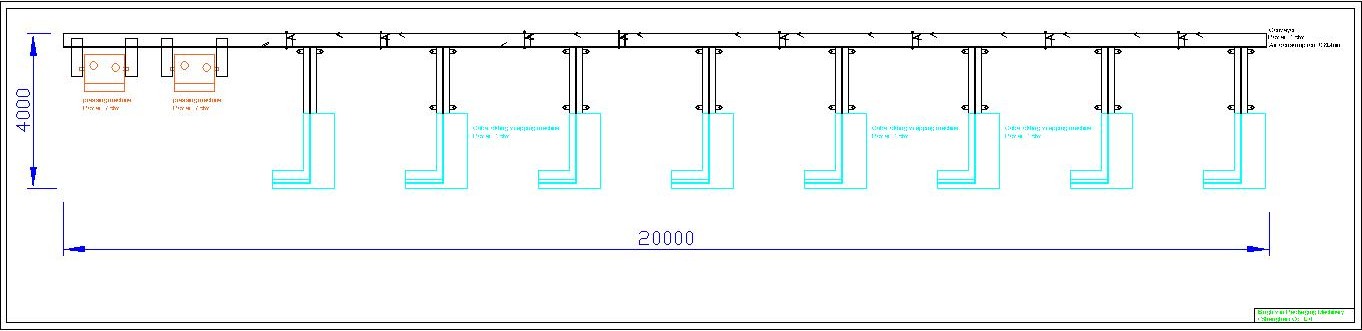

Layout of the tomato flavored cubes processing line

https://www.brightwingroup.com/a-well-known-condiment-companys-1600pcsmin-4g-tomato-flavored-cube-pressing-wrapping-machine-processing-line.html

This is a big line: 1600pcs cubes per minute. The line combined two 4g tomato flavored cube pressing machines and 8 4g tomato flavored cube wrapping machines.

It adopts conveyors to transport cubes from the pressing machines' outlets to the special main conveyor, the main conveyor undertooks the functions of transportation and distribution. Once any wrapping machine is lack of cubes, the cylinder on the main conveyor will guide the cubes go to the wrapping machine.

The capacity of the pressing machine is 800pcs/min, and each wrapping machine can get 200pcs/min at least.

After wrapping, workers will collect the cubes by hand and transport them to the other workshop.
